Case 12 Chip-Silt Collector SK-3 手動集屑盒

Click to see movie


    Most of the tanks under the machining centers are dirty. The tank would be cleaned once only per year due to poor manpower. The quality of coolant also influences the cutting performance deeply. The chip, silt and mud blocked the pumps, nozzles and pipes usually. It is a headache for most workers and operators.

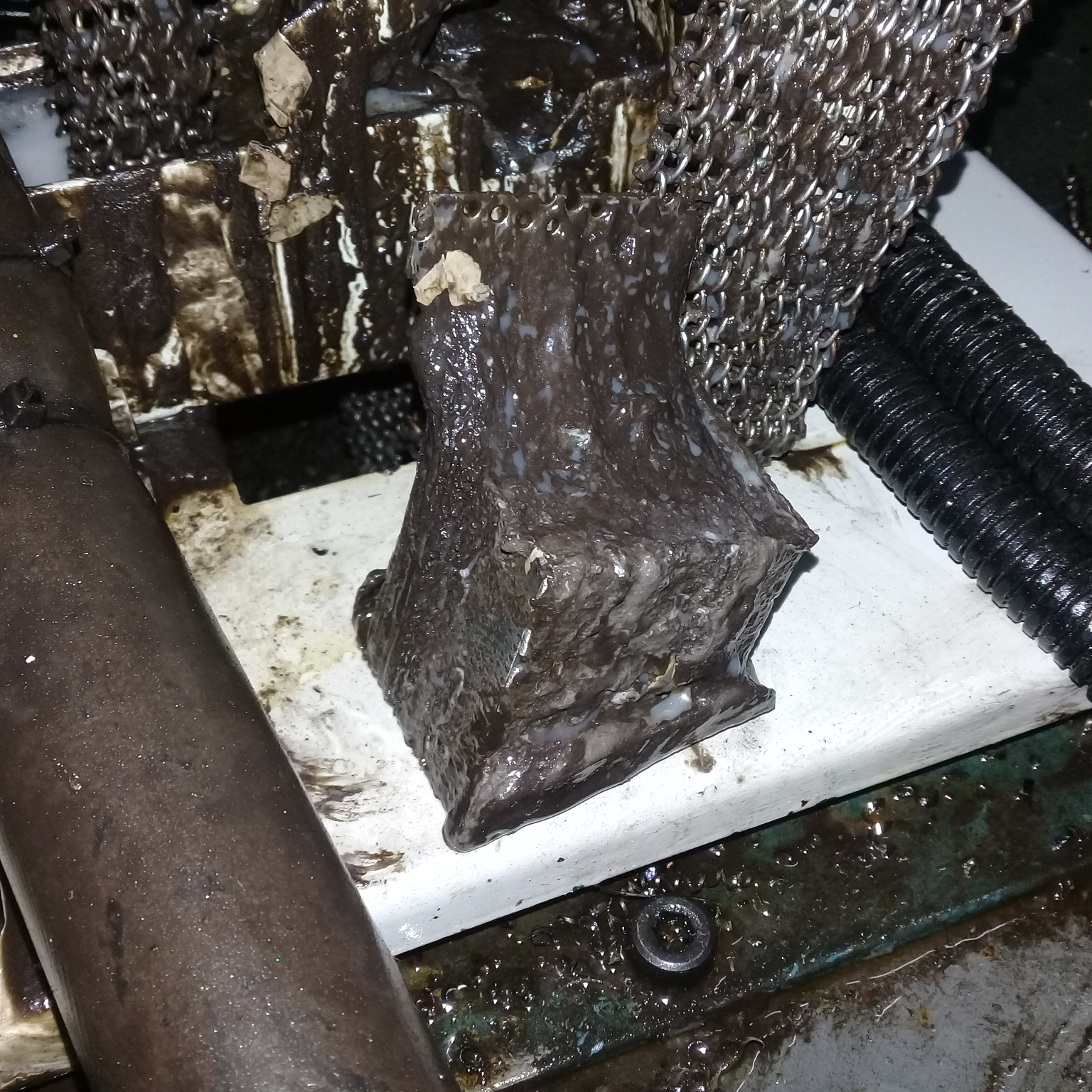

   After Genau multi-step oil skimmer was installed in this system, most of the silt and mud were exhausted immediately. The volume of mud is so much that the pipe was blocked in a period. The photo is one of the real situation in running. The chip collector was cleaned many times to ensure the smooth running of this skimmer.

   The coolant becomes much clearer than before and the replace cycle time of pump and filter is longer than before. The operators can pay more attention on tooling and precision instead of cleaning coolant and tramp oil.

由於鐵網的過濾形態, 可以將水箱內與油類附著的髒污一併帶出, 所以將其集中於集屑盒, 可以手動清除, 提高切削液的清潔度.
